GRIT Freedom Chair Specifications
Build & Materials
The frame of each GRIT Freedom Chair is 1020 steel, which is zinc-chromated and has a powdercoat finish. The typical adult model, without accessories, is 45 lbs when fully assembled. When disassembled for transport, the weight of the heaviest component is only 25 lbs. The rider weight limit of the GRIT Freedom Chair 3.0 and Spartan is 300 lbs. The rider weight limit of the GRIT Freedom Chair Pro is 250 lbs.
Main Components: GRIT Freedom Chair
Below, see a diagram labeling the primary components of GRIT Freedom Chairs. Note that parts may vary by model.
Detailed Specifications
Use the below images (scroll with the left and right arrows) and the below table for details specifications and measurements.

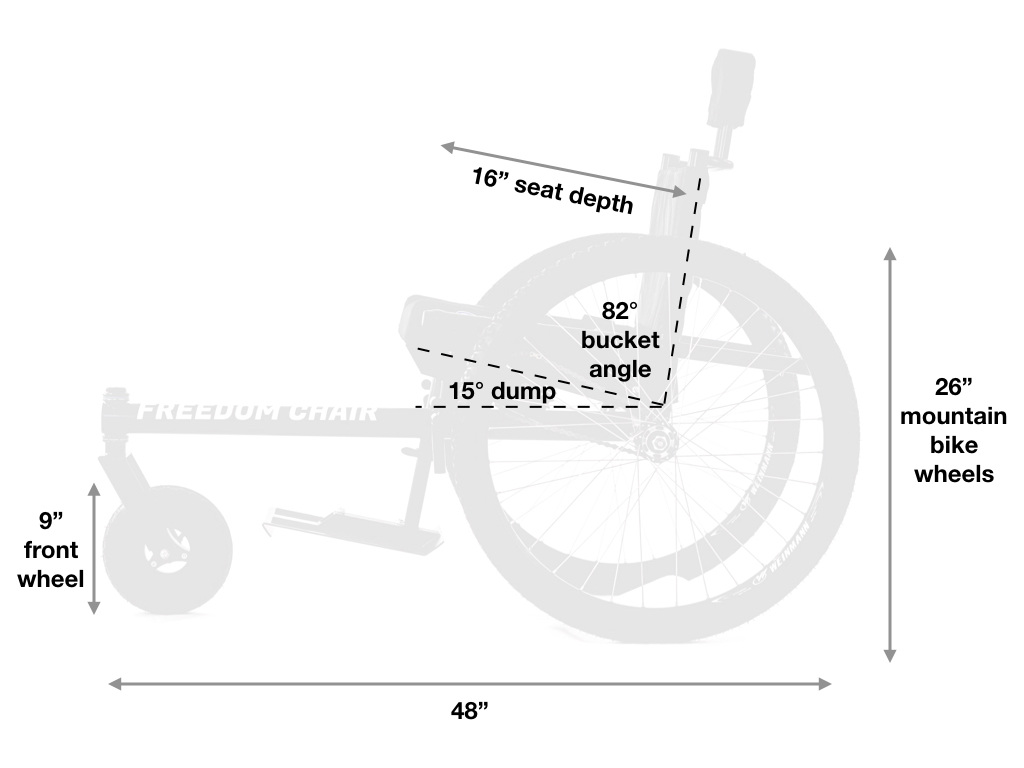

Side View: GRIT Freedom Chair 3.0 and GRIT Freedom Chair Spartan
Side View: GRIT Freedom Chair Pro and GRIT Junior
Top View

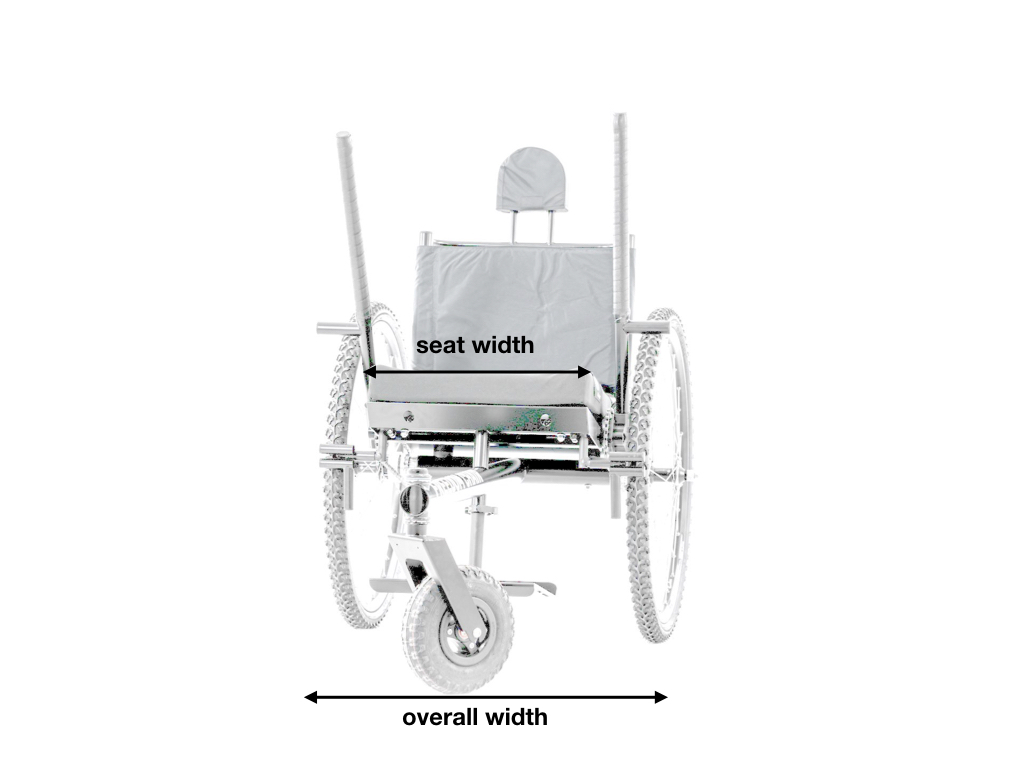

Front View
Side View: GRIT Freedom Chair 3.0 and GRIT Freedom Chair Spartan
Side View: GRIT Freedom Chair Pro and GRIT Junior
Top View
Front View

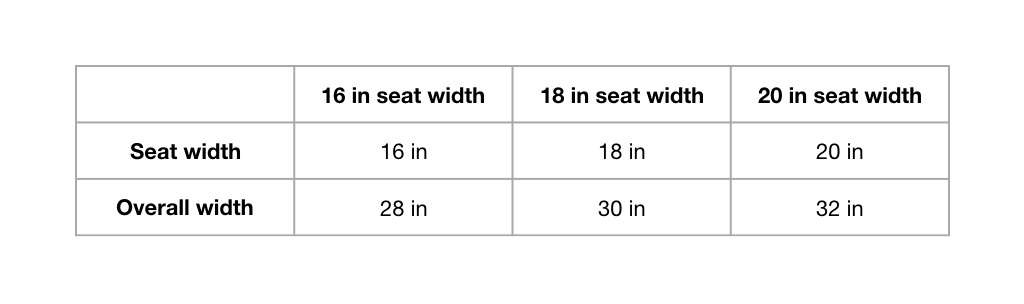

| Label | Description | Junior | 16" | 18" | 20" | Pro |
|---|---|---|---|---|---|---|
| A | Caster | 9" | 9" | 9" | 9" | 9" |
| B | Wheel | 20" | 26" | 26" | 26" | 26" |
| C | Seat Width | 12" | 16" | 18" | 20" | 16", 18", 20" |
| D | Dump/Drop | 15°/3" | 15°/5" | 15°/5" | 15°/5" | 15°/5" |
| E | Seat Depth | 12" (as shipped, adjustable) | 16" | 16" | 16" | 16" (as shipped, adjustable) |
| F | Seatback Bucket Angle | 82° (as shipped, adjustable) | 82° | 82° | 82° | 82° (as shipped, adjustable) |
| G | Pro Seatback Top Depth | 9-14" | N/A | N/A | N/A | 14-24" |
| H | Pro Seatback Bottom Depth | 9-12" | N/A | N/A | N/A | 14-17" |
| I | Seatback Height | 13-17" | 14" nylon only 22" with backpad | 14" nylon only 22" with backpad | 14" nylon only 22" with backpad | 20-22" |
| J | Seat to Floor | 16" | 20" | 20" | 20" | 20" |
| K | Lever Width | 15" | 19" | 21" | 23" | 19", 21", 23" |
| L | Lever Top Width with Inward Couplings | 11" | 13" | 15" | 17" | 13", 15", 17" |
| M | Lever Brake Position | 0-7" | 8" | 8" | 8" | 8" |
| REF | Lever Length | 17" | 25" | 25" | 25" | 25" |
| N | Lever Length Usable | 10" | 15" | 15" | 15" | 15" |
| O | Footrest Width | 10" | 10" | 10" | 10" | 10" |
| P | Footrest Depth | 10" | 10" | 10" | 10" | 10" |
| Q | Knee-to-Heel Height | 11-15" | 15-18" | 15-18" | 15-18" | 15-18" |
| R | Overall Width | 24" | 28" | 30" | 32" | 28", 30", 32" |
| S | Overall Length | 42" | 48" | 48" | 48" | 48" |
| T | Base Width | 20" | 24" | 26" | 28" | 24", 26", 28" |
| U | Base Length | 33" | 38" | 38" | 38" | 38" |
